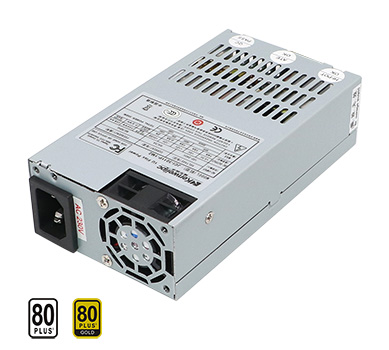

JCI-1511P-1M2

Catalogue

JCI-1511P-1M2

Technical Parameters：

JCI-1511P-1M2 :
● Conformedto 80Plus Type
● Conformed to IPC 1U Flex Type
● Output Capacity: 160Watts Continuous
● Wide voltage input 90-264VAC
● Low Ripple & Noise
● Operation Temperature:0~50℃
● Dimension: 150* 82 *40.5mm
● 4020mm Low-Noise Fan
● Active PFC
● Life expectancy: MTBF >100,000 hours
● Multiple Protections Function：(OCP、OVP、UVP、OPP)
● Safety Approvals：CE, FCC, CB, CCC

Output Connectors:


20+4Pin M/B	4Pin CPU	5 Pin SATA	大4 Pin Molex
1	1	2	3

Specification：

Model No	JCI-1511P-1M2
Output Wattage	160W
PFC	Active PFC
Efficiency	> 80 % Full load
P. G	100-500 ms
Hold-up Time	16ms Min
Weight	0.9 KG
Color	Silver
Fan	Single 4020mm DC Fan
Dimension	150mm (L) x 82mm(W) x 40.5mm(H)
Protection	OCP、OVP、UVP、OPP、Short Circuit Protection

INPUT
Input Voltage	90-264Vac
Input Frequency	47 ~ 63 Hz
MTBF	100,000 hrs minimum (at 25 ℃)
MTBF4	4A at 115V； 2A at 230V

Input Current
Voltage	+5V	+12V	-12V	+3.3V	+5Vsb
MIN	0.2	0.5	0.0	0.1	0.0
NOM	5	6	0.25	5	1
MAX	10	12	0.5	10	2
Units	AMPS	AMPS	AMPS	AMPS	AMPS
1) Total DC output power shall not exceed 160 Watts. 2) +5V and +3.3V outputs shall not exceed 65 Watts 3) +12V outputs shall not exceed 140 Watts.

Environment
Operation Temperature	0 ℃ to 50 ℃
Storage Temperature	-40 ℃ to 80℃
Operation Humidity	20% to 85%, non-condensing
Storage Humidity	10% to 95%, non-condensing
